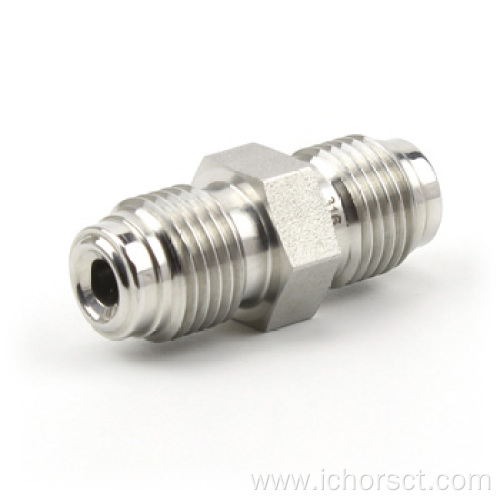

U-Union Body

Product Attributes
Packaging & Delivery
Product Description

Product Attributes

Model No.: U

Packaging & Delivery

Download:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

IntroductionEG-LOK Metal Gasket Face Seal Fittings offer the high purity of a metalto-metal seal, providing leak-tight service from vacuum to positive pressure.The seal on a VCR assembly is made when the gasket is compressed by two beads during the engagement of a male nut or body hex and a female nut.Available in sizes from 1/16 to 1 in.and 6 to 18 mm.Silver-plated female threads to prevent galling and ensure easy, consistent assembly.The materials include 316,316L, and 316L VAR (Vacuum Arc Remelt) stainless steel materials are available

FeaturesMetal-to-metal seal provides perfect leak-tight service from criticalvacuum to high pressureFemale threads are silver plated to prevent gallingTwo test port for easy leak testingNon-rotational female nut to prevent transmission of torqueAvailable in sizes from 1/16 to 1 in.and 6 to 18 mmEG-LOK fittings materials include 316,316L, and 316L VAR (Vacuum Arc Remelt) stainless steel materials are availableStandard surface finish on glands and bodies is a roughness averageof 10uin.(O.25um)Ra

AdvantagesFemale threads are silver plated to prevent gallingTwo test port for easy leak testingNon-rotational female nut to prevent transmission of torqueNo "virtual leak" zonesSide-load retainer gasket for easy installation and minimal clearance for removalPrecision manufactured gasket for maximum performanceMaterial heat code is stamped on glands and all shapes to ensure raw material traceability

More OptionsOptional Instrumentation Pipe FittingsOptional Instrumentation Weld FittingsOptional O-Ring Face Seal FittingsOptional Miniature Butt-Weld FittingsOptional Long Arm Butt-Weld FittingsOptional Automatic Tube Butt Weld FittingsOptional Vacuum FittingsOptional Vacuum Adapter Fittings
