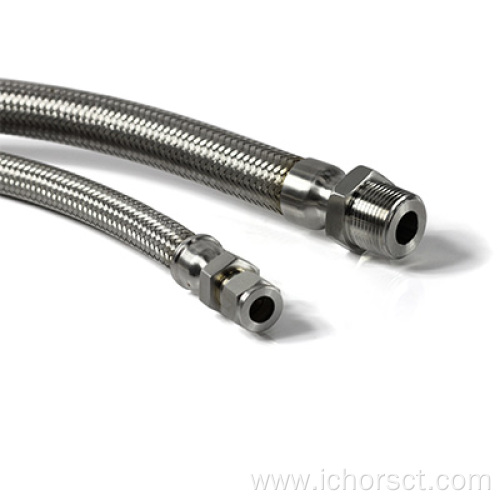

MF1 Metal Flexible Hose

Name: ICHOR FLIUID 3
Uploaded: 2025-05-26T04:24:31+08:00
Description: IntroductionEG-LOK flexible hose is a multiple-layered flexible conduit through which fluid is conveyed from one point

Product Attributes
Packaging & Delivery
Product Description

Product Attributes

Model No.: MF

Packaging & Delivery

Download:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

IntroductionEG-LOK flexible hose is a multiple-layered flexible conduit through which fluid is conveyed from one point to another, we have strict testing method that every EG-LOK MF1 series hose assembly is factory test with pure water at 1.5 times the maximum working pressure.

FeaturesMaximum working pressure up to 3100psig(213 bar)Working temperature from -325℉ to 850℉(-200℃ to 454℃)316L core tube and 304 stainless steel overbraidHose sizes from 1/4 to 1 inAll-metal hose promotes corrosion resistanceEnd connections welded in accordance with ASTM Boiler

AdvantagesStandard and custom-length assembliesWide range of fractional and metric end connections316L stainless steel annular convoluted coreSingle braid layer of 316L stainless steel promotes hose pressure containment and exhibits strong performance in dynamic cycling applicationsCommonly used in high-temperature vacuum applicatons and medium-pressure corrosive environmens, or where permeation is undesirable
