Metal Gasket Face Seal Fittings C-Coupling

Metal Gasket Face Seal Fittings C-Coupling

Packaging & Delivery
Product Description

Packaging & Delivery

Download:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

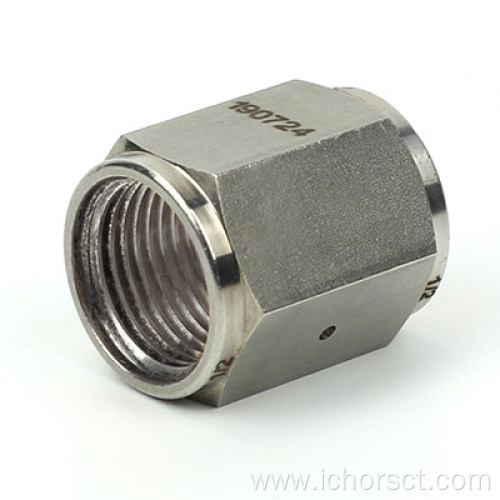

IntroductionEG-LOK Metal Gasket Face Seal Fittings offer the high purity of a metalto-metal seal, providing leak-tight service from vacuum to positive pressure.The seal on a VCR assembly is made when the gasket is compressed by two beads during the engagement of a male nut or body hex and a female nut.Available in sizes from 1/16 to 1 in.and 6 to 18 mm.Silver-plated female threads to prevent galling and ensure easy, consistent assembly.The materials include 316,316L, and 316L VAR (Vacuum Arc Remelt) stainless steel materials are available

FeaturesMetal-to-metal seal provides perfect leak-tight service from criticalvacuum to high pressureFemale threads are silver plated to prevent gallingTwo test port for easy leak testingNon-rotational female nut to prevent transmission of torqueAvailable in sizes from 1/16 to 1 in.and 6 to 18 mmEG-LOK fittings materials include 316,316L, and 316L VAR (Vacuum Arc Remelt) stainless steel materials are availableStandard surface finish on glands and bodies is a roughness averageof 10uin.(O.25um)Ra
